We are manufacturing facilities, we provide our clients with a quality range of
Air Atomizing Nozzles in Qatar. In order to provide atomized spray, these nozzles make use of the collision of liquid and sir. Available in various designs, these nozzles are manufactured using sophisticated technology to assure dimensional preciseness and durability. Atomizing Spray nozzles are a family of spray nozzle used in applications that requires finely atomized spray of fluids. We offer air-atomizing nozzles, mist nozzles, and fog nozzles for a wide variety of applications. Fluid lines can be either pressurized or gravity fed. Air Atomizing spray nozzles can be customized based on customer requirements.
We offer custom
spray nozzle solutions in Qatar for various applications like water injection, dust suppression, material injection in chemical processing, Special fogging effect, gas cooling, Humidification, and various precision spraying application.
What is Atomization?Atomization refers to the process of breaking up liquids into droplets.
Air atomizing sprayers are tools for mixing a liquid with a stream of compressed air to produce a thin mist or spray. They are often employed in industrial processes including coating, spraying, and humidification.
What is Air Atomizing Nozzle and How it's different from Atomizing Nozzles?
In
direct pressure nozzles, the fluid is broken up (atomized) into droplets by either impact on a surface or by the swirling motion caused by bypassing the liquid through a shaped orifice. In both cases, the energy required for atomization comes from the potential energy of the fluid itself. Essentially the energy available for atomization is a function of fluid pressure.
In
air atomizing nozzles pressurized air (or other gas) is used to impact the fluid being sprayed. The impact of the gas causes the fluid to break apart into a fine spray. This means that the energy required for atomization is no longer dependent on fluid pressure because of which very fine sprays can be produced at low fluid pressures. This allows for very fine, low-volume sprays to be delivered.
Air Atomizing spray Nozzles have many unique spray properties and specifications which help the designers to use them in a wide range of spraying applications.
Atomizing nozzle spray system is a combination of a
water atomizer nozzle and an

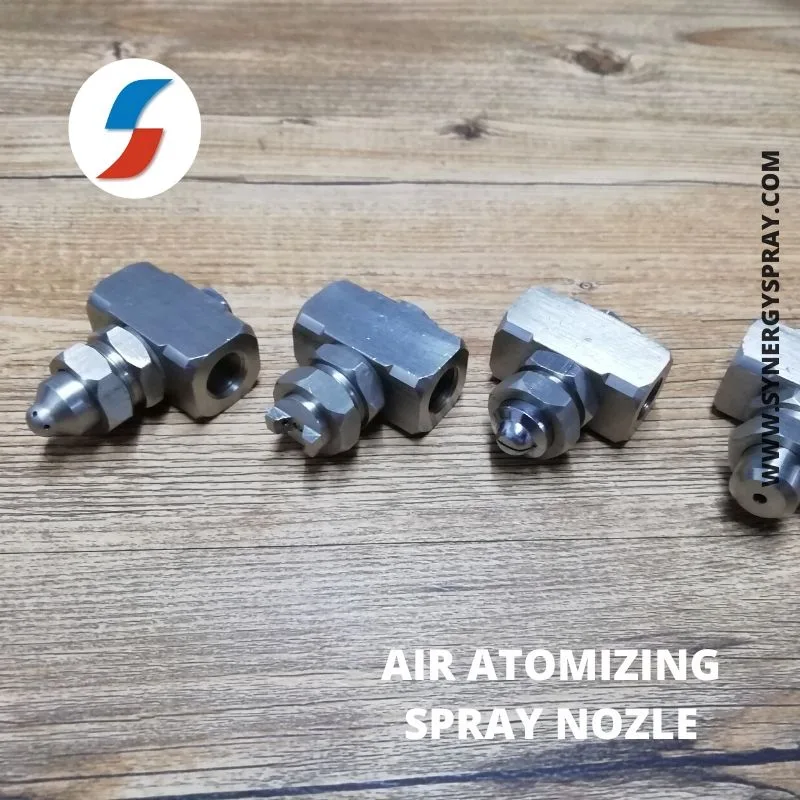

air atomizer nozzle.What are the types or Methods Of Atomization?1. Pressure Atomozation
2. Air Spray Atomisation
3. Centrifugal atomisation
4. Electrostatic atomisation
5. Twin Fluid Atomisation
What Are The Factors Affecting the Atomization Process?
The spraying system atomizing nozzle is an eventual process in many industrial and scientific applications, such as spray drying, combustion, and coating. The factors that affect atomization are broadly categorized into three main categories: liquid properties, atomizer properties, and process conditions.
1. Liquid properties: The properties of the liquid atomized can have a significant impact on the atomization process. Some of the key liquid properties that affect atomization include:
Viscosity: Higher viscosity liquids are more difficult to atomize due to their resistance to deformation and flow.
Surface tension: Liquids with high surface tension tend to form larger droplets, whereas those with low surface tension form smaller droplets.
Density: The density of the liquid affects the momentum of the droplets, which can impact the trajectory and size distribution of the droplets.
Chemical composition: The chemical properties of the liquid can affect its surface tension, viscosity, and other properties that influence atomization.
2. Atomizer properties: The atomizer is the device that generates droplets or particles by breaking up the liquid. Some of the key atomizer properties that affect atomization include:
Type of atomizer: Different types of atomizers have different mechanisms for atomizing liquids, such as pressure atomizers, rotary atomizers, and ultrasonic atomizers.
Nozzle geometry: The shape and size of the nozzle can affect the size and trajectory of the droplets.
Atomizer speed: The speed at which the atomizer operates can affect the size and distribution of the droplets.
3. Process conditions: The conditions under which the atomization process occurs can also have a significant impact on the outcome. Some of the key process conditions that affect atomization include:
Liquid flow rate: The rate at which the liquid is fed into the atomizer can affect the size and distribution of the droplets.
Atomizer distance: The distance between the atomizer and the target surface can affect the size and distribution of the droplets.
Ambient conditions: Factors such as temperature, humidity, and airflow can affect the evaporation and trajectory of the droplets.
What are the types Of Atomisers available?
Atomizing nozzle Spray system involves creating a condition of high relative velocity between the liquid to be atomized and the surrounding air or gas. Typical atomizer nozzle types include:
- Electrostatic
- Impinging jet
- Windmill
- Whistle
Ultrasonic Twin fluid. Twin-fluid atomizers include all nozzle types, and may involve one of the processes below:
Internal Mix – The gas and liquid are mixed within the body of the nozzle. It forms the finest atomization, which exits through one orifice. There is a direct relationship between the liquid and the air; any change in the air pressure affects the liquid flow. The full cone, hollow cone, and flat spray patterns can be achieved using the internal mix method.

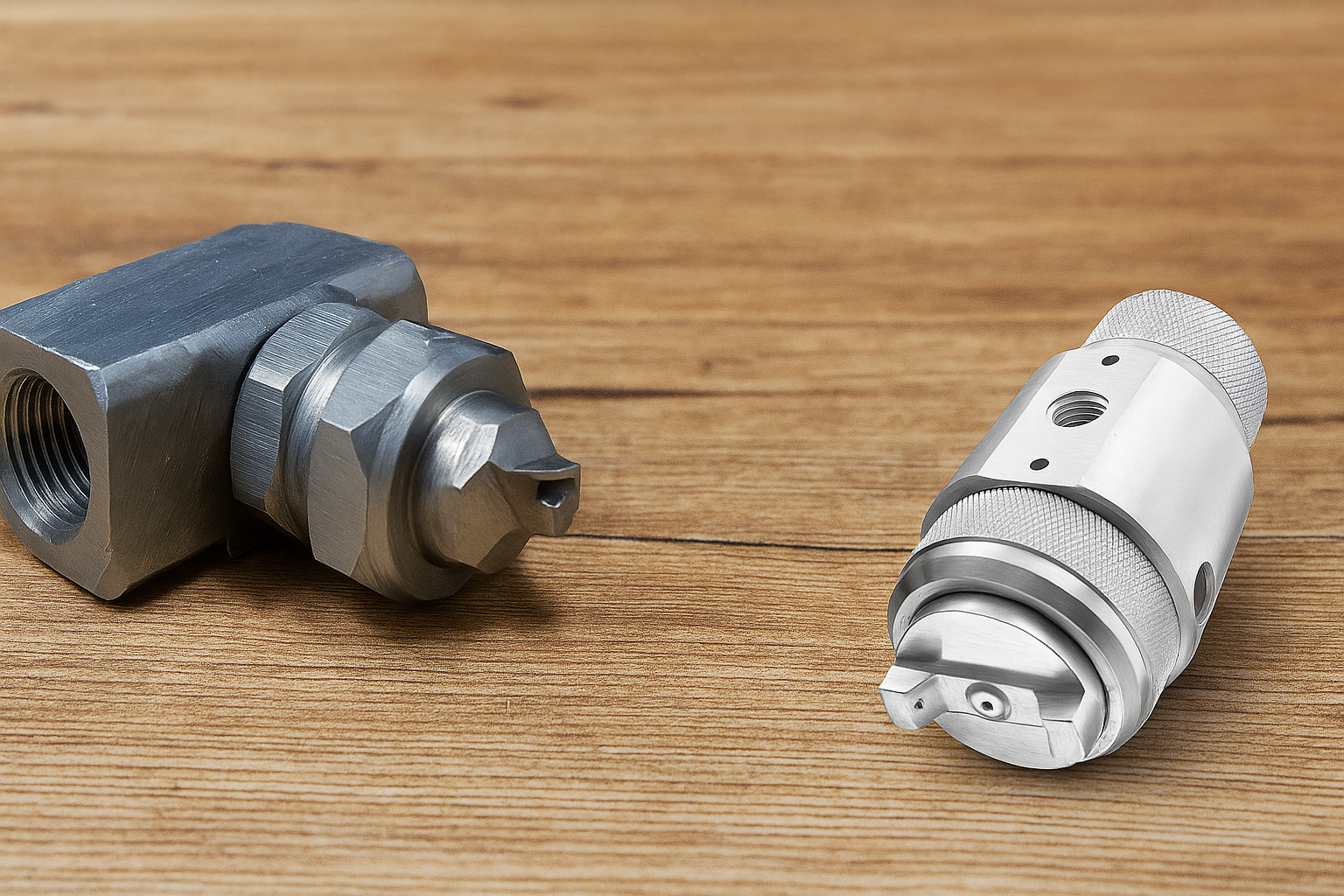

External Mix – The gas and liquid are mixed externally; this offers better control since there is no connection between the gas and liquid inlet lines. Viscous liquids can be sprayed using External mixtures. however, the atomization is not as fine as in the internal mix. Both full cone and flat spray patterns are achievable.

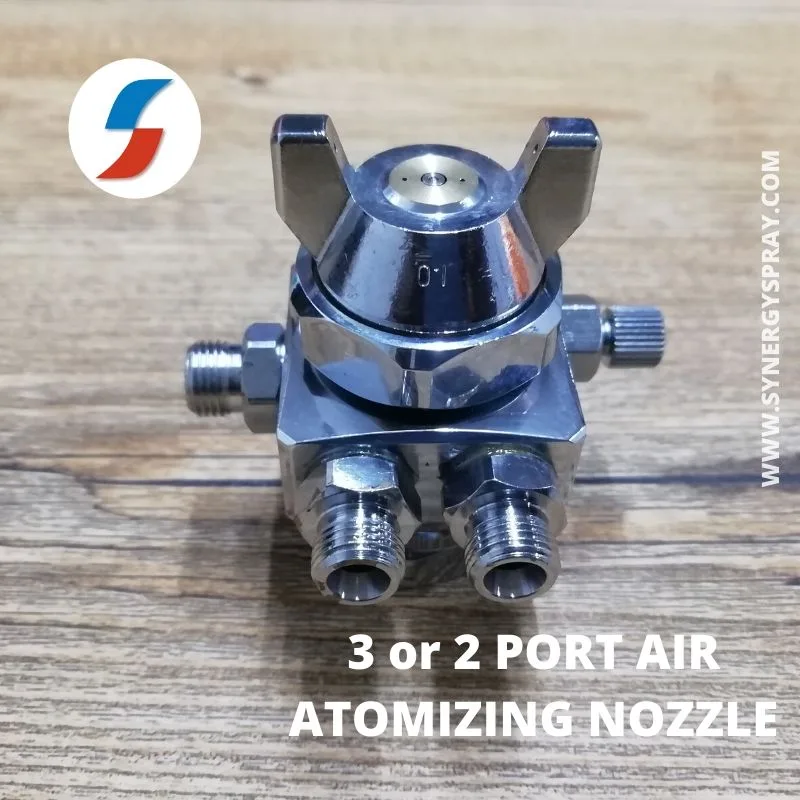

What are the Air Atomizing Nozzle types available With Industrial Direct Systems?Five types of
Water & Air Atomizing Spray nozzles are designed and available with us
External Mixture Flat Fan
Internal Mixture Siphon Flat Fan
Internal Mixture wide angle
Internal Mixture Jet round
External Mixture Narrow round
Paint Spray Atomizing Nozzle
Do let us know in case of any custom nozzle requirements.
tag: air atomizing nozzle Qatar, for chemical injection, water atomizing nozzle Qatar
